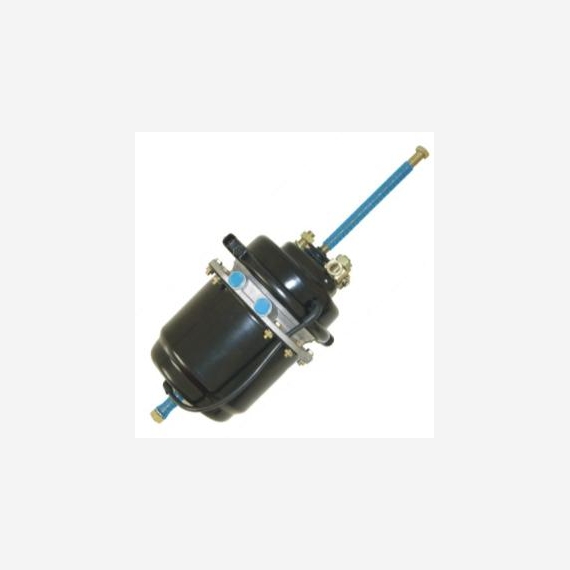

TECHNICAL

1.  Max. operating pressure: 8/8 bar
2.  Type: 30/24
3.  Stroke: 64/64
4.  Output force S: 8700
5.  Release pressure: 5.1 bar
6.  Output force D: 11200
7.  Yoke: without (M 16x1.5)
8.  Port threads: M 16x1.5
11.  with fording ability: no
12.  Push-rod length: 203
13.  Thread length: 203
14.  Distance between bolts: 120.7
15.  Bolt threads: M 16x1.5
16.  Bolt lengths: 43
17.  Sealing: Gaiter
18.  Return-spring force: 250
19.  Over stroke: no
