TECHNICAL

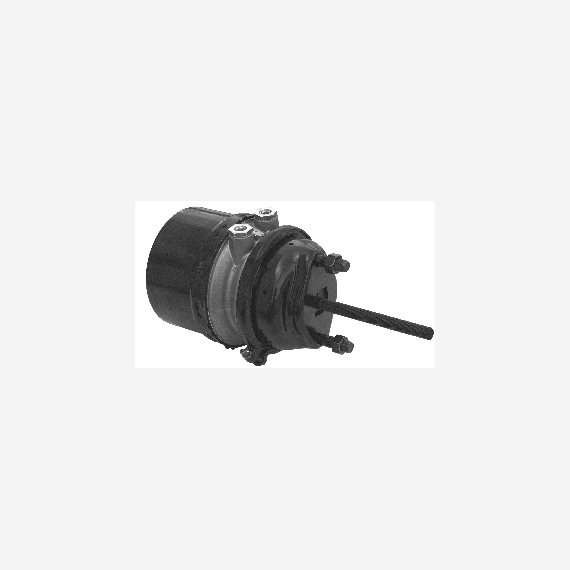

1.  Comments: Universal-Tristop-Zylinder needs additional accessories (Link): 423 000 901 2
2.  Max. operating pressure: 10.2/8.5 bar
3.  Type: 20/24 IBV
4.  Stroke: 65/65
5.  Output force S: 8700N/20mm
6.  Release pressure: 4.9 bar
7.  Output force D: 7800N/6.5bar
11.  Yoke: without (M 16x1.5)
12.  Port threads: M 16x1.5 , M 22x1.5
13.  with fording ability: no
14.  Push-rod length: 250
15.  Thread length: 250
16.  Angle a: -135°
17.  Angle b: 0°
18.  Angle d: -
19.  Angle c: 0°
20.  Distance between bolts: 120.7
21.  Bolt threads: M 16x1.5
22.  Bolt lengths: 43
23.  Sealing: Disc
24.  Return-spring force: 225
25.  Over stroke: no
26.  Opposite: -
