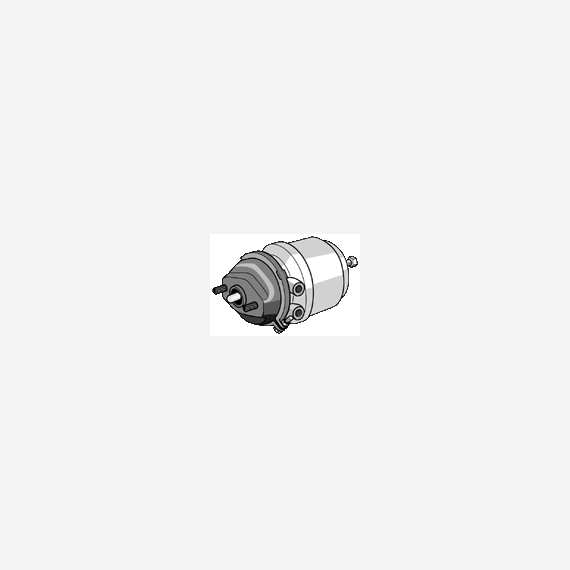

TECHNICAL

Mounting bolt centres [mm] 120.7
Mounting bolt thread size M16x1,5
Service portion output force @ 6 bar/35mm stroke (kN) 8.200 kN
Spring portion output force @ 35mm stroke [kN] 10.300 kN
Spring portion output force @ 25mm stroke [x100N] 111.0
Stroke (stroke of service/stroke of spring portion) [mm] 64/57
Spring Portion Diameter [mm] 191 mm
Mounting stud length [mm] 43 mm
Weight [Kg] 9.40 kg
Has opposite handed version K017120N00
Service Portion Port(s) size M16x1,5
Spring Portion Port(s) size M16x1,5
Service Portion Type (Diaphragm size) 24
Spring Portion Type 30
Spring Portion Version Piston
Push rod length (to yoke pin centre if fitted) [mm] 15 mm
