TECHNICAL

1.  Max. operating pressure: 10.2/8.5 bar

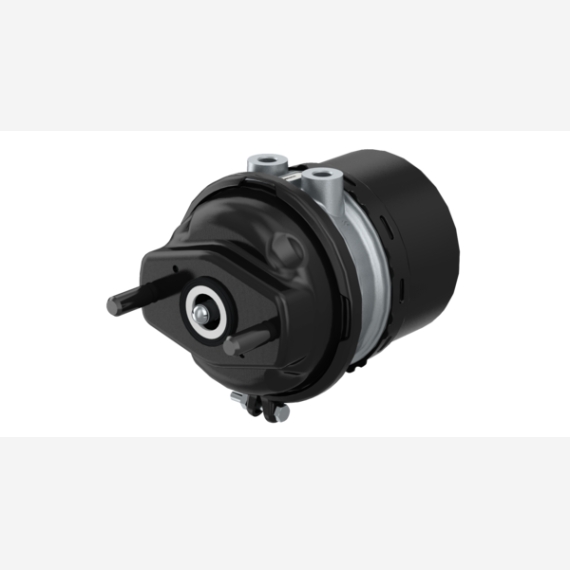

2.  Type: 24/16 IBV
3.  Stroke: 65/45
4.  Output force S /30mm: 7500 N
5.  Release pressure: 5.5 bar
6.  Output force D: 8500 N
7.  Output force at: 6.5 bar/ 20 mm
11.  Return-spring force: 220 N
12.  Port threads: M 16x1.5
13.  with fording ability: no
14.  Push-rod length: 15
15.  Con-rod:  O16-R8
16.  Angle a: 180°
17.  Angle b: 90°
18.  Angle c: 0°
19.  Angle d: -
20.  Bolt threads: M 16x1.5
21.  Bolt lengths: 43
22.  Distance between bolts: 120.7
23.  Opposite: -

OE NR: 2147780, 1802409, 2192928
